Unica 860

Your Most Trusted Ally
in the Operating Room

The Only Surgical Light Without Glare

With the UNICA surgical light series, RIMSA has achieved a revolutionary milestone: the complete elimination of glare in the operating room.
UNICA 860 delivers deep, layered illumination that enhances visibility without straining the eyes. The secret lies in its advanced 2R Double Reflection System, where the beam is filtered through a textured surface that diffuses and collimates the light—ensuring intense, yet glare-free illumination.

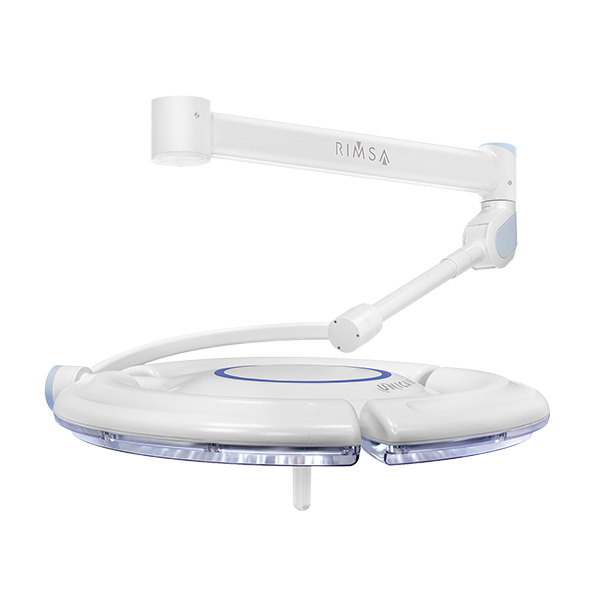

UNICA 860 Surgical Lamp

The UNICA 860 is a state-of-the-art surgical light built for major surgeries, offering unmatched performance and precision.

Key features include:
– 7 Selectable Color Temperatures for optimal tissue contrast (3,800–5,400 K)
– Consistent Focused Light with zero distortion
– Adjustable intensity, color temperature, and light field diameter via a sterilizable handle
– Ambient light mode for transitional procedures
– 2R Double Reflection Technology for total shadow suppression and expanded emission area
– 160,000 Lux at 1 meter – powerful, balanced lighting exactly where you need it

Features

Compensation Area

3D Light

Double Reflection

rimsa - always-on-focus light

Always-in-Focus Illumination

Accessories

rimsa - double yoke icon

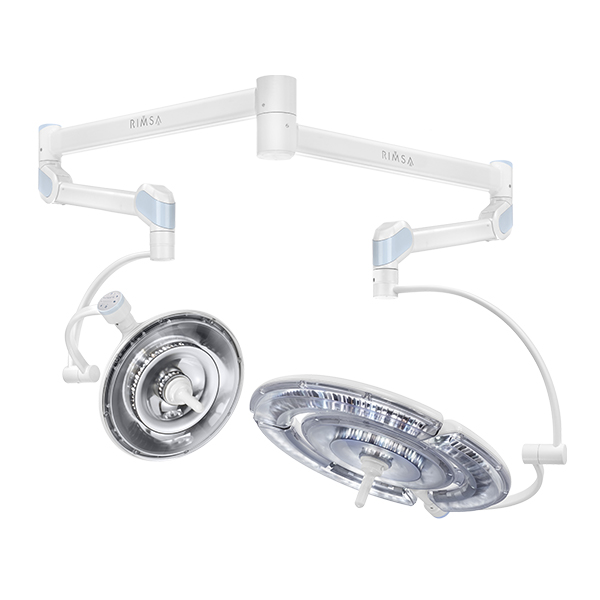

Double Yoke

rimsa - full hd wire icon

FULL HD Wire

rimsa - full hd wifi icon

FULL HD WiFi

rimsa - 4k wire icon

4K Wire

rimsa - monitor support arm icon

Monitor Support Arm

rimsa - wall panel control icon

Wall Control Panel

rimsa - battery group icon

Battery Group

rimsa - ir remote control icon

IR Remote Control

rimsa - full integration system icon

Full Integration System

Sustainability certificate

UNICA 860 Available Configurations

Technical Specifications

Illuminance at 1 Meter (Ec)

160.000 Lux

Lamp Head Diameter

86 cm

Color Temperature Range (7 levels / continue)

3.800-5.400K

Light Field Diameter

170-400 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

3 to 100%

Engineered to Perform from Every Angle

Need More Information?

  • Previous ProjectU29

  • Next ProjectUnica 520

Compensation Area

For specific types of surgery such as thoracic surgery, abdominal surgery, and cesarean delivery, it is essential to have a wide and high-intensity light field. An additional optical system allows the illuminated area to expand up to 30 cm, maintaining a peripheral light intensity of 6,000 Lux while keeping the central intensity (Ec) unchanged.

3D Light

At the center of the lamp, an additional module of 9 LEDs has been integrated, equipped with special reflectors designed to project light deeply. The 3D deep light ensures excellent three-dimensional illumination, especially within body cavities, assisting the surgeon with optimal visibility during procedures.

Double Reflection

In 2017, RIMSA patented its innovative Double Reflection technology, designed to maximize the light emission surface. This breakthrough enables the UNICA series and selected veterinary lamps to deliver exceptional surgical lighting performance with completely glare-free illumination.
