Pentaled 30N

High Performance,
Compact Size

A Breakthrough in Operating Room Lighting

The Pentaled 30N surgical light, part of the innovative Pentaled Series N, represents a turning point in medical lighting, as it was among the first LED scialytic lamps introduced to the market.
Its compact design makes it ideal for maxillofacial and aesthetic surgery, especially in operating rooms where overhead space is limited and interference with ceiling-mounted equipment must be minimized.

PENTALED 30N Surgical Light

With manual focusing directly within the sterile field, the Pentaled 30N ensures fast, accurate control of the illuminated area. The Focus function is activated by simply rotating the sterile central handle.
Its multiple light sources and reflected light system produce a true scialytic effect for three-dimensional, shadow-free illumination.

Key features include:
– Two selectable color temperatures (4.500 K – 5.000 K)
– Endoled Function with adjustable color – ideal for endoscopic procedures

Features

3D Light

Indirect Light

rimsa - manual adjustment of focus icon

Manual Adjustment of Light Field Diameter and Focus

Accessories

rimsa - double yoke icon

Double Yoke

rimsa - monitor support arm icon

Monitor Support Arm

rimsa - battery group icon

Battery Group

rimsa - wall panel control icon

Wall Control Panel

rimsa - ir remote control icon

IR Remote Control

rimsa - full integration system icon

Full Integration System

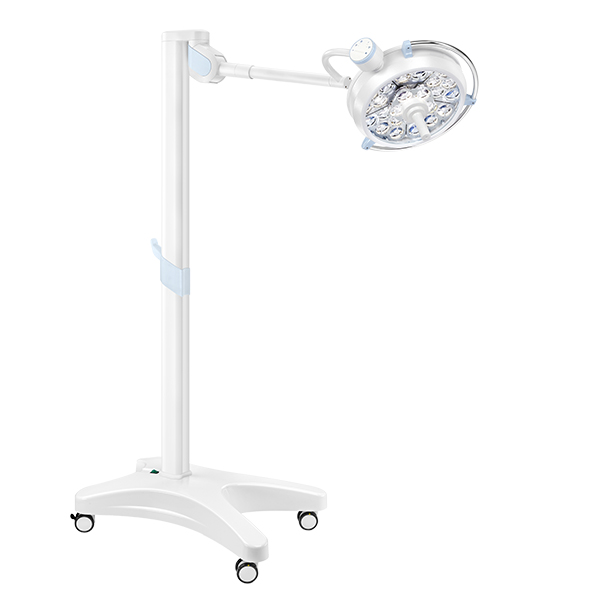

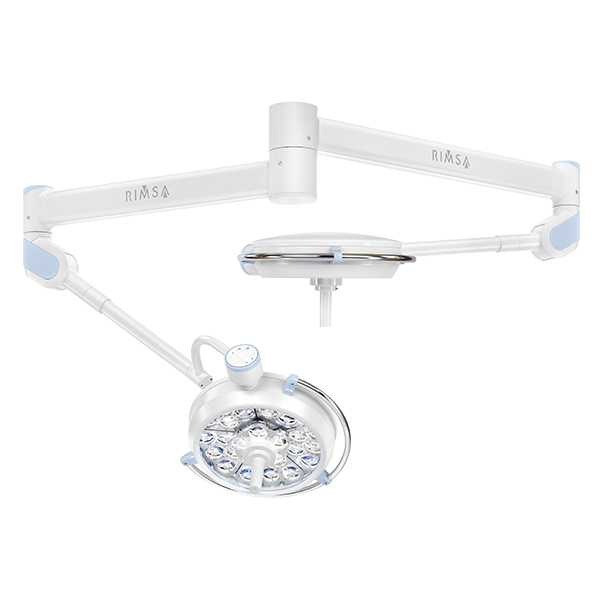

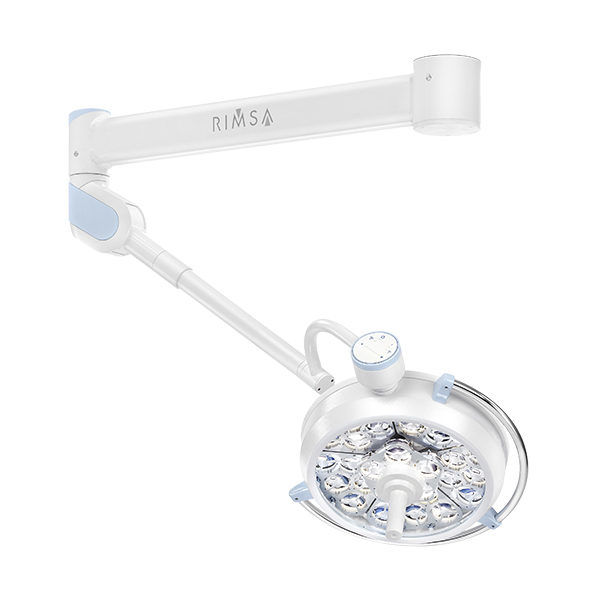

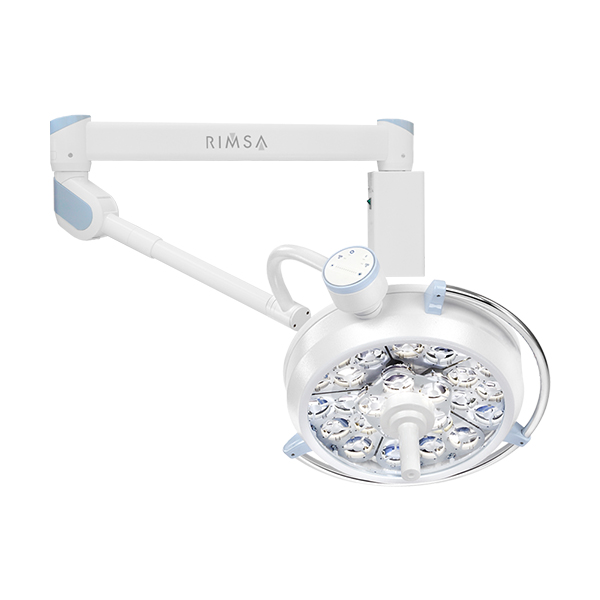

PENTALED 30N Available Configurations

Technical Specifications

Illuminance at 1 Meter (Ec)

160.000 Lux

Lamp Head Diameter

40 cm

Color Temperature

4.500-5.000K

Light Field Diameter

140-280 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

5-100%

Engineered to Perform from Every Angle

Need More Information?

  • Previous ProjectPentaled 63N

  • Next ProjectU29

3D Light

At the center of the lamp, an additional module of 9 LEDs has been integrated, equipped with special reflectors designed to project light deeply. The 3D deep light ensures excellent three-dimensional illumination, especially within body cavities, assisting the surgeon with optimal visibility during procedures.

Indirect Light

LED lights have greatly reduced the light-emitting surface area. Such a reduced emission surface negatively affects the surgical effect (that of avoiding shadows). Rimsa, aware of these drawbacks, has introduced Indirect Light technology on its product, which guarantees an increased light-emitting surface area and a good surgical effect.
