Mastiff

Powerful Illumination,
Zero Glare

Experience and Innovation

The Mastiff veterinary surgical lamp is the result of RIMSA’s deep-rooted expertise in lighting technology combined with groundbreaking innovation. Building on the milestone achieved in 2002—when RIMSA launched the world’s first LED surgical lamp—the same advanced principles have been applied to veterinary medicine.

MASTIFF Surgical Lamp

Key features of the Mastiff surgical light include:

  • Glare-free illumination: Thanks to 2R technology, glare from the illuminated dome is completely eliminated. This dual-reflection optical collimation system also maximizes the light emission surface.
  • Compensation area to reduce black spots: The annoying black spot effect caused by direct glare is further minimized by a low-intensity light area around the surgical field. This helps ease the visual transition from high to low brightness zones.
  • Easy maneuverability: The dome has been designed for a comfortable grip. The light intensity can be adjusted directly by the surgeon during procedures using a touch control on the sterile handle.

Features

Compensation Area

3D Light

Double Reflection

rimsa - always-on-focus light

Always-in-Focus Illumination

Accessories

rimsa - double yoke icon

Double Yoke

rimsa - full hd wire icon

FULL HD Wire

rimsa - full hd wifi icon

FULL HD WiFi

rimsa - 4k wire icon

4K Wire

rimsa - monitor support arm icon

Monitor Support Arm

rimsa - wall panel control icon

Wall Panel Control

rimsa - battery group icon

Battery Group

rimsa - ir remote control icon

IR Remote Control

rimsa - full integration system icon

Full Integration System

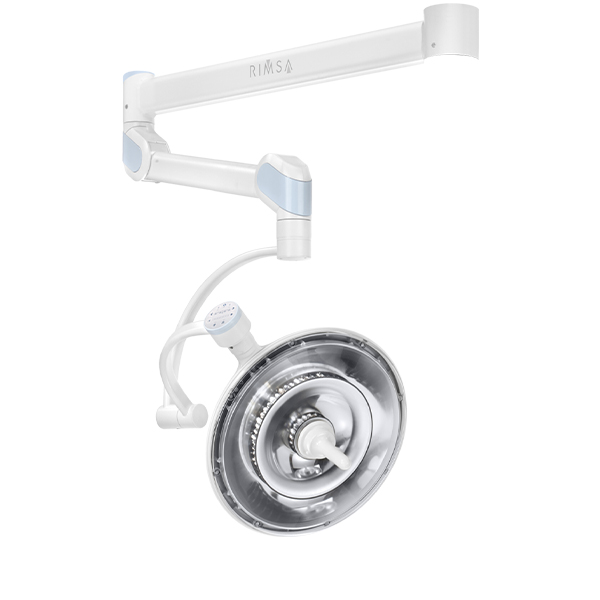

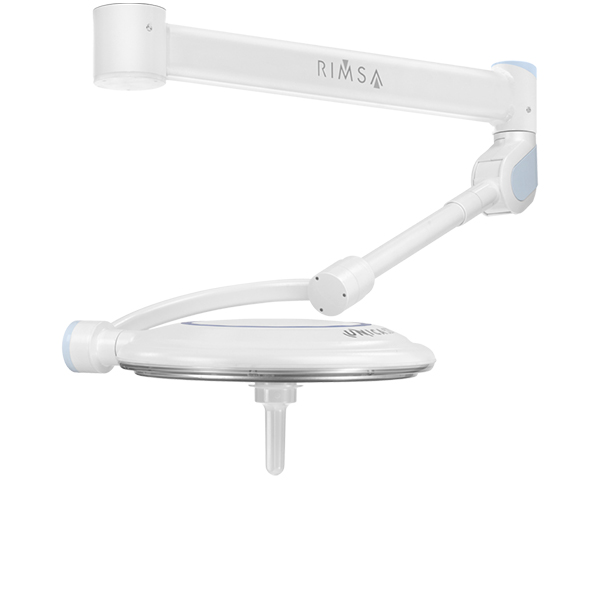

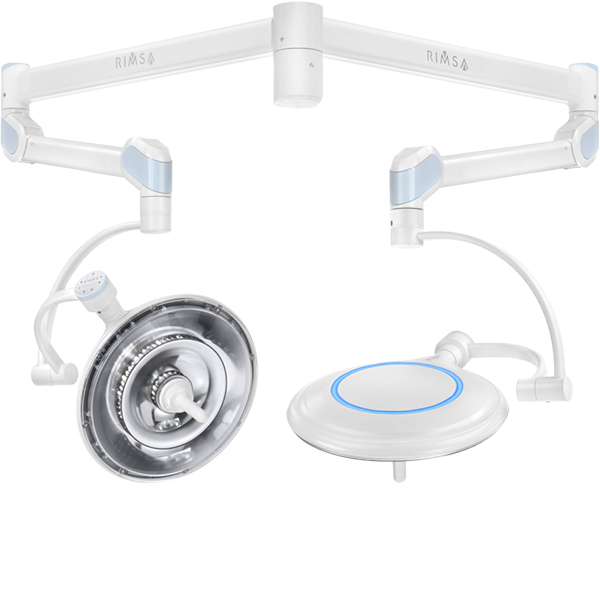

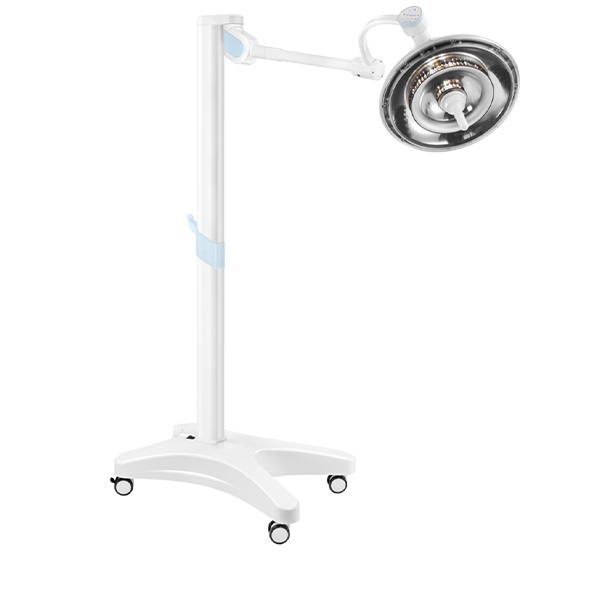

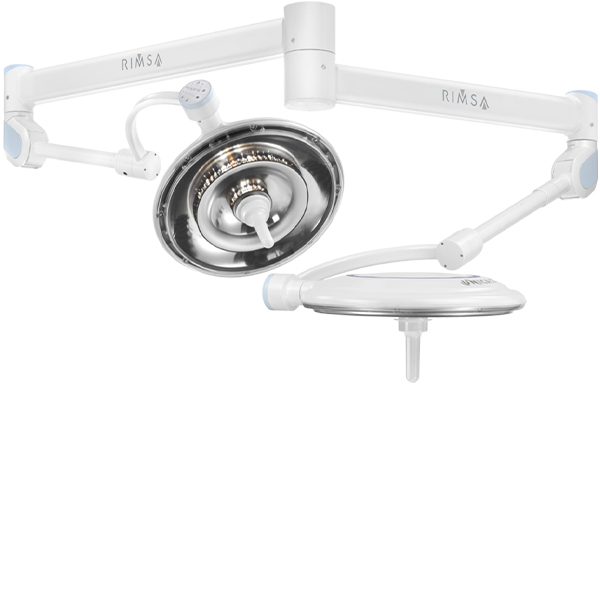

MASTIFF Available Configurations

Technical Specifications

Illuminance at 1 Meter (Ec)

160.000 Lux

Lamp Head Diameter

52 cm

Color Temperature Range (7 levels / continue)

3.800-5.400 K

Light Field Diameter

170-380 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

3-100%

Engineered to Perform from Every Angle

Need More Information?

Buy it on our shop

  • Previous ProjectPentaled 30E – Veterinary

  • Next ProjectSetter

Compensation Area

For specific types of surgery such as thoracic surgery, abdominal surgery, and cesarean delivery, it is essential to have a wide and high-intensity light field. An additional optical system allows the illuminated area to expand up to 30 cm, maintaining a peripheral light intensity of 6,000 Lux while keeping the central intensity (Ec) unchanged.

3D Light

At the center of the lamp, an additional module of 9 LEDs has been integrated, equipped with special reflectors designed to project light deeply. The 3D deep light ensures excellent three-dimensional illumination, especially within body cavities, assisting the surgeon with optimal visibility during procedures.

Double Reflection

In 2017, RIMSA patented its innovative Double Reflection technology, designed to maximize the light emission surface. This breakthrough enables the UNICA series and selected veterinary lamps to deliver exceptional surgical lighting performance with completely glare-free illumination.
