U29

The Best Light for
the Operating Room

The Only Surgical Light Without Glare

The U29 surgical light is specifically designed to provide comfortable, glare-free illumination for both the surgeon and surgical assistants. Its defining feature—indirect lighting—ensures a cool, deep light field that eliminates glare, delivering maximum visual clarity and comfort throughout the procedure.

U29 Surgical Lamp

The U29 surgical light combines the proven indirect lighting technology of RIMSA’s successful Pentaled Series with the elegant and compact of the Unica line. Engineered for performance, comfort, and accessibility, U29 is a surgical lighting solution that benefits every surgeon.

Key features include:
– Effortless maneuverability, thanks to its compact, ergonomic dome
– Two selectable color temperatures (4.500 K – 5.000 K)
– Adjustable light intensity (up to 160.000 lux)
– Variable surgical field diameter for optimized illumination
– Endoled Mode, a soft, dedicated light setting for endoscopic procedures

Features

Indirect Light

3D Light

Compensation Area

rimsa - always-on-focus light

Always on focus Illumination

Accessories

rimsa - double yoke icon

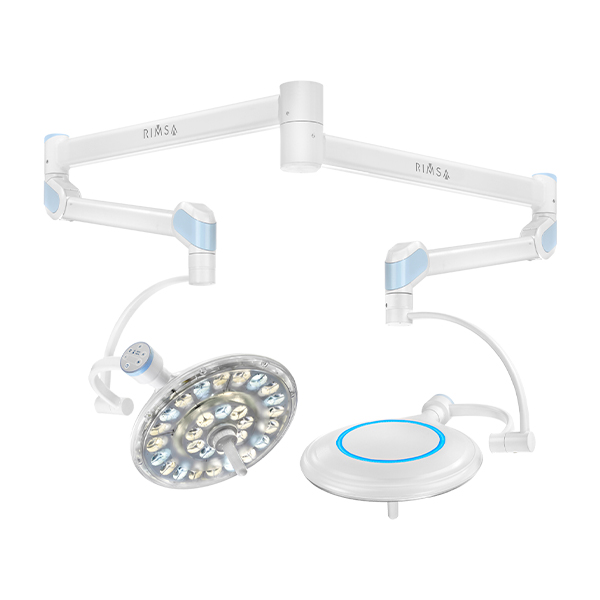

Double Yoke

rimsa - full hd wire icon

FULL HD Wire

rimsa - full hd wifi icon

FULL HD WiFi

rimsa - 4k wire icon

4K Wire

rimsa - monitor support arm icon

Monitor Support Arm

rimsa - wall panel control icon

Wall Control Panel

rimsa - battery group icon

Battery Group

rimsa - ir remote control icon

IR Remote Control

rimsa - full integration system icon

Full Integration System

Sustainability certificate

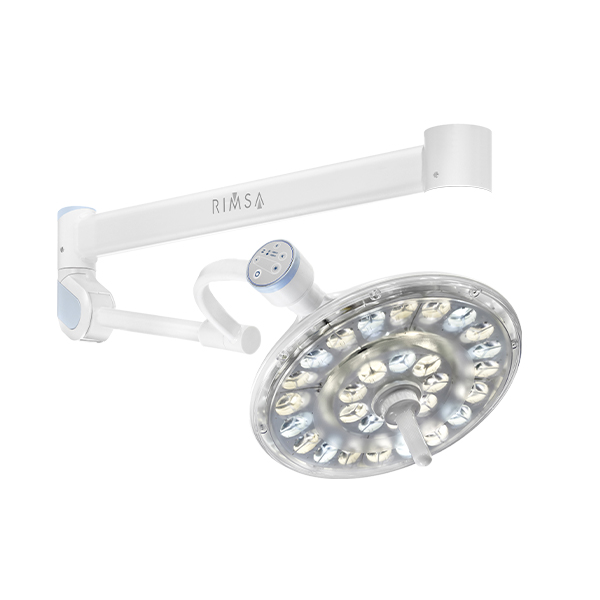

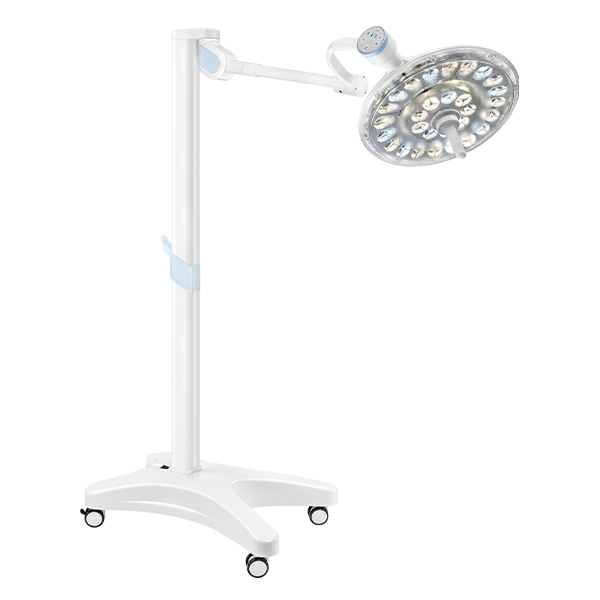

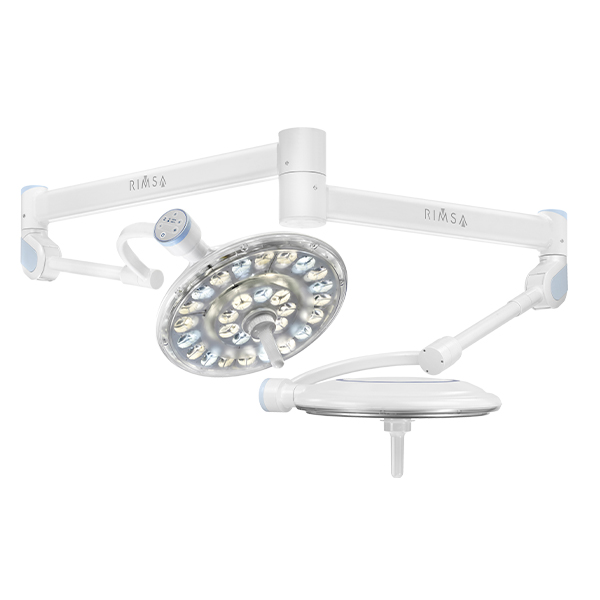

U29 Available Configurations

Technical Specifications

Illuminance at 1 Meter (Ec)

160.000 Lux

Lamp Head Diameter

52 cm

Color Temperature

4.500-5.000K

Light Field Diameter

140-230 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

5-100%

Engineered to Perform from Every Angle

Need More Information?

  • Previous ProjectPentaled 30N

  • Next ProjectUnica 860

Indirect Light

LED lights have greatly reduced the light-emitting surface area. Such a reduced emission surface negatively affects the surgical effect (that of avoiding shadows). Rimsa, aware of these drawbacks, has introduced Indirect Light technology on its product, which guarantees an increased light-emitting surface area and a good surgical effect.

3D Light

At the center of the lamp, an additional module of 9 LEDs has been integrated, equipped with special reflectors designed to project light deeply. The 3D deep light ensures excellent three-dimensional illumination, especially within body cavities, assisting the surgeon with optimal visibility during procedures.

Compensation Area

For specific types of surgery such as thoracic surgery, abdominal surgery, and cesarean delivery, it is essential to have a wide and high-intensity light field. An additional optical system allows the illuminated area to expand up to 30 cm, maintaining a peripheral light intensity of 6,000 Lux while keeping the central intensity (Ec) unchanged.
