Pentaled 30E Light

Uncompromising
Light Quality

Innovative Design. Exceptional Performance

The Pentaled 30E Light is the ideal solution for operating rooms where compactness is crucial—particularly in settings where ceiling-mounted equipment could interfere with surgical lighting. This model is perfect for oral and maxillofacial surgery .
This model is perfect for oral and maxillofacial surgery as well as aesthetic plastic procedures, combining the d
esign advanced optics of the Pentaled 30E with a lighter, ergonomic structure, all without sacrificing performance.

or lights configuration - Rimsa Pentaled 30e Light PA

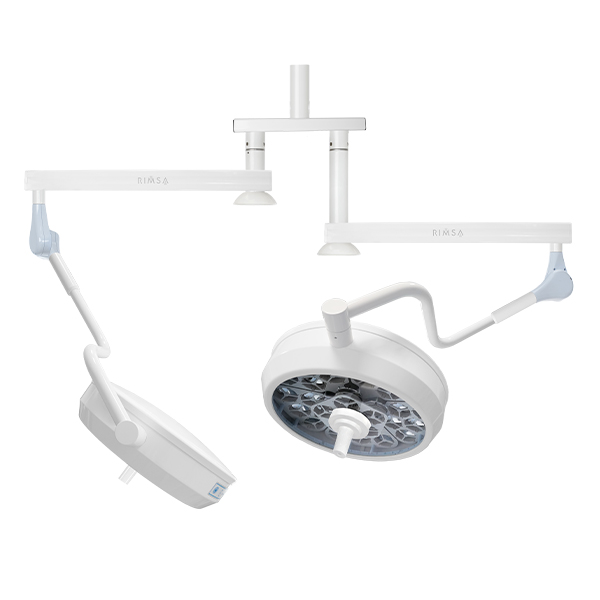

or lights combination - Rimsa Pentaled 30e lightPI

PENTALED 30E LIGHT Surgical Lamp

Designed for the most demanding procedures, Pentaled 30E Light delivers powerful, high-definition illumination while protecting the surgeon from eye strain or glare.
The light is generated by 30 elliptical reflectors grouped into 6 modules containing 5 LEDs each, providing a luminous intensity of 160,000 Lux and a high color rendering index of 96 Ra.Thanks to its indirect lighting system, the lamp creates a deep, uniform light field that doesn’t produce harsh shadows or glare. Specially designed optical reflectors capture and redirect the full LED spectrum precisely and efficiently. Its advanced optics ensure a field that is always in focus, even when repositioning the dome. The illuminated surgical area can be widened or reduced electronically, while maintaining consistent brightness at the center (Ec).
An aluminum ring encases the dome, improving handling and ease of positioning.
With a LED lifespan of over 60,000 hours, the Pentaled 30E Light is engineered for long-lasting reliability.

Features

Indirect Light

3D Light

Compensation Area

rimsa - always-on-focus light

Always-in-Focus Illumination

Accessories

rimsa - battery group icon

Battery Group

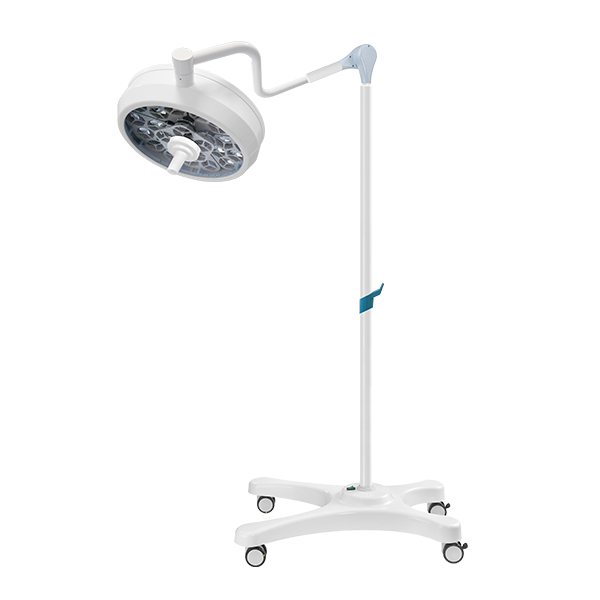

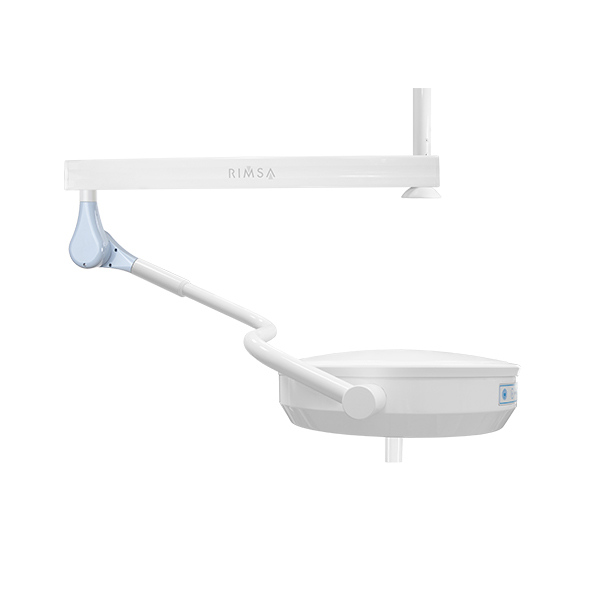

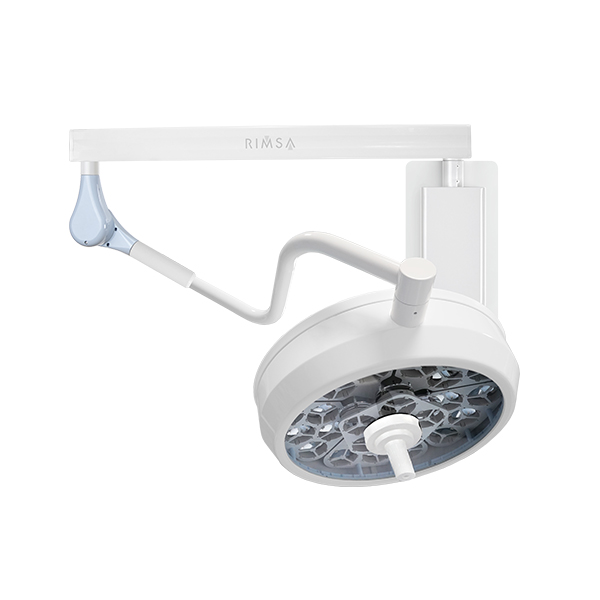

Configurazioni PENTALED 30E LIGHTPentaled 30E Light Available Configurations

Technical Specifications

Illuminance at 1 Meter (Ec)

160.000 Lux

Lamp Head Diameter

40 cm

Color Temperature

4.500-5.000K

Light Field Diameter

140-260 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

5-100%

A Surgical Light Designed to Perform from Every Angle

Need More Information?

  • Previous ProjectPentaled 12

  • Next ProjectPentaled 30E

Indirect Light

LED lights have greatly reduced the light-emitting surface area. Such a reduced emission surface negatively affects the surgical effect (that of avoiding shadows). Rimsa, aware of these drawbacks, has introduced Indirect Light technology on its product, which guarantees an increased light-emitting surface area and a good surgical effect.

3D Light

At the center of the lamp, an additional module of 9 LEDs has been integrated, equipped with special reflectors designed to project light deeply. The 3D deep light ensures excellent three-dimensional illumination, especially within body cavities, assisting the surgeon with optimal visibility during procedures.

Compensation Area

For specific types of surgery such as thoracic surgery, abdominal surgery, and cesarean delivery, it is essential to have a wide and high-intensity light field. An additional optical system allows the illuminated area to expand up to 30 cm, maintaining a peripheral light intensity of 6,000 Lux while keeping the central intensity (Ec) unchanged.
